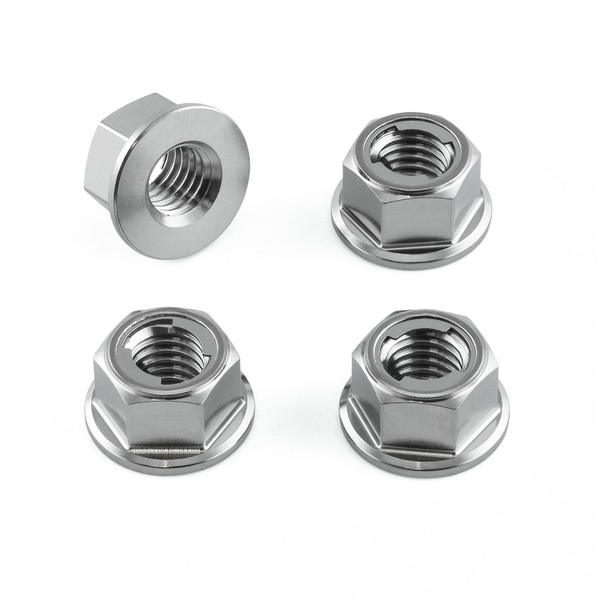

Titanium Flanged Metal Locknut M8x(1.25mm) Pack x4 (Sprocket fitment)

Titanium Flanged Metal Locknut M8x(1.25mm) Pack x4 (Sprocket fitment) (TILOCKNUT8-4)

SKU:
MTILOCKNUT8-4
$63.44 - $78.22
Current Stock:
Adding to cart… The item has been added

Secure Checkout

 Flat Rate Delivery $13.59 (exc. GST)

Description

A flanged lock nuts have an integral washer which serves to distribute the pressure of the nut over the part being secured, reducing the chance of damage to the part and making it less likely to loosen as a result of an uneven fastening surface. It also uses a stamped metal insert which acts as a locking mechanism by deforming over the threads of the bolt.

The insert locks the nut in two ways. First, it forces the bottom face of the screw threads against the top face of the nut threads, increasing the friction between the two. Second, the insert applies a compressive force against the screw itself.

A good option where locking devices are required in high temperature applications.

Instant transformation to the back end of your bike. Made from 6AL-4V (Grade 5) titanium. These are stronger, lighter and are highly corrosion resistant.

Material:
Titanium Grade 5
Product Type:
Sprocket
Product Weight:
20.04g
Pack Quantity:
4
Pre-Drilled:
No
Thread Diameter:
8mm
Thread Pitch:
1.25mm
Flange Diameter:
16
Height:
9
Socket Size:
12
PRODUCT FITMENT – click for more information
ISP_PRODUCT_FINDER: Honda:CRF125F:2019,Honda:CRF125F:2020,Honda:CRF125F:2021,Honda:CRF125F:2022,Honda:CRF125F:2023,Honda:CRF125F:2024
‎
